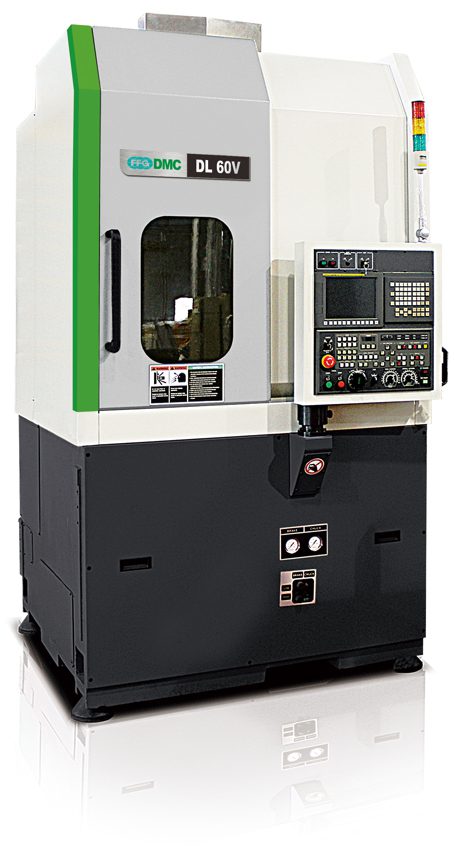

DL 60V[L] (=60[L])
Heavy Duty Vertical Turning Center
- Fanuc 0i-TF Plus Controller
- 10.4” LCD Monitor
- Powerful 30hp (22kW) Spindle Motor
- Torque 774 lbf-ft (107 kgf-m)
- 3,000 rpm
- Ø17.72” (Ø 450mm) Maximum Turning Diameter
- 17.72” (450mm) Turning Length
- 12-Station Servo Turret
- A2-8 Spindle Nose
- Boxway
- Tool Size: □ 1”/Ø 2” (□25mm/Ø50mm)
- 3-Color Tower Signal Light
- 787 IPM (20m/min) X, and Z Rapid Traverse
- Manual Guide i
- Low / High Chuck Clamping System
- Chip Conveyor
- (4) Extra M-Codes
- Air Gun
- Coolant Flushing Gun
- Oil Skimmer
Specifications subject to change without prior notice
