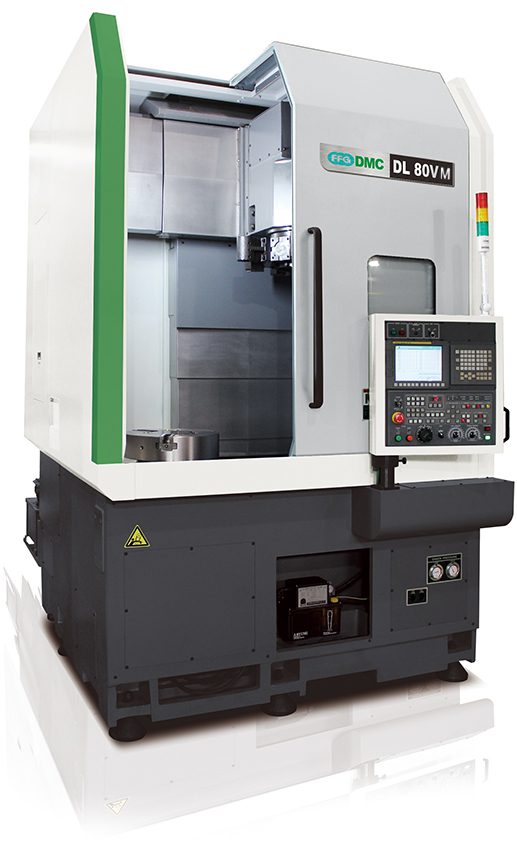

DL 80V[L]M (=80[L]M)
Heavy Duty Boxway Vertical Turning Center
- Fanuc 0i-TF Plus Controller
- 10.4” LCD Monitor
- Powerful 40hp (30kW) Spindle Motor
- 2,000 rpm
- Torque 1,099 lbf-ft (152 kgf-m)
- Ø28.74” (Ø 730mm) Maximum Turning Diameter
- 29.53” (750mm) Turning Length
- BMT 75 Servo Turret
- 3,000 rpm
- 7.4/5 hp (5.5/3.7kW)
- 12-Station Servo Turret
- A2-11 Spindle Nose
- Boxway
- Tool Size: □ 1.26”/Ø 2” (□32mm/Ø50mm)
- Low / High Chuck Clamping System
- Chip Conveyor
- Coolant Gun
- Air Gun
- (4) Extra M-Codes
- 3-Color Tower Signal Light
- Machine Leveling Plate
Specifications subject to change without prior notice
