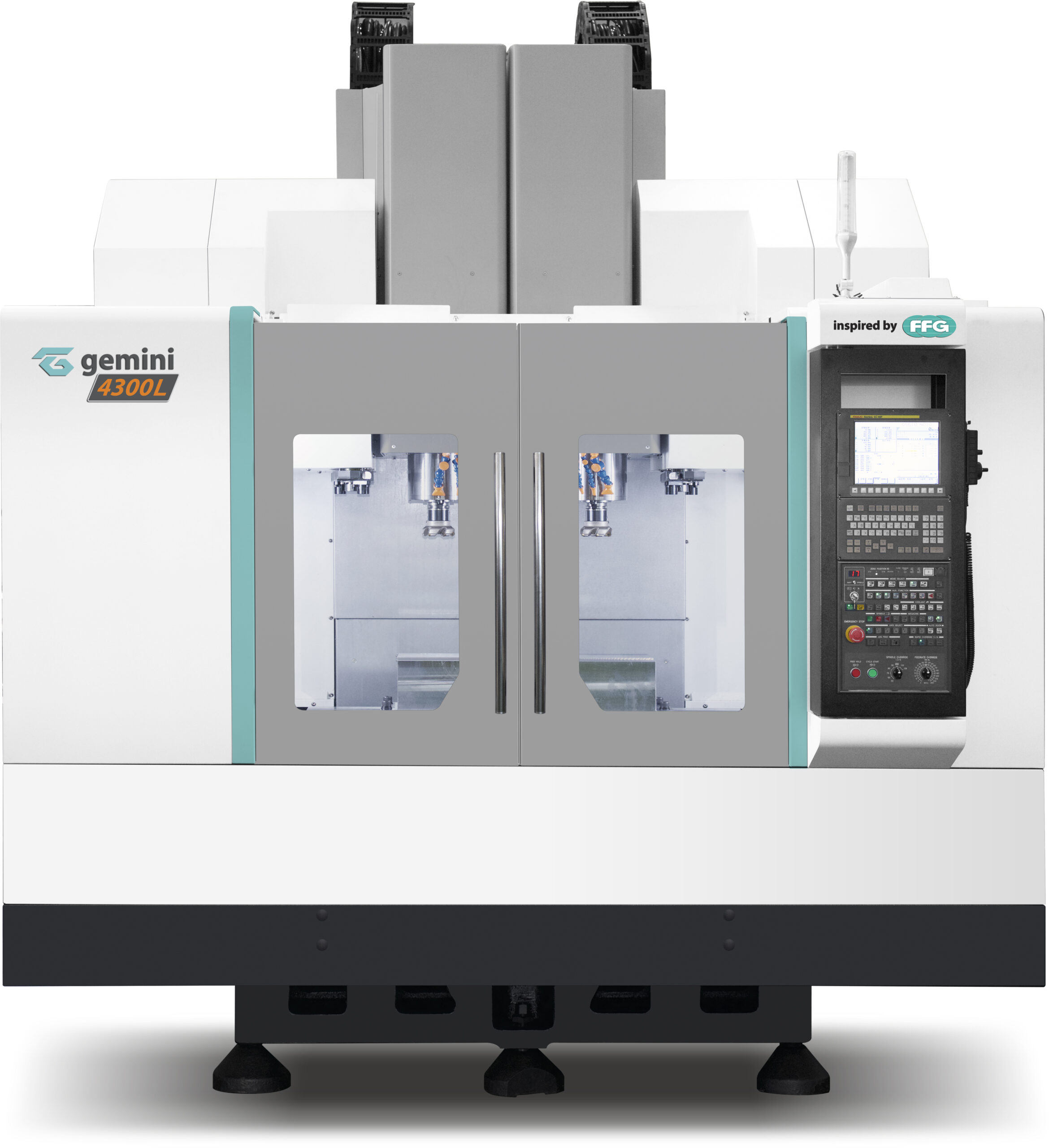

DVD-4300L
Twin Spindle Vertical Machining Center
- Fanuc 0i-MF Plus Controller
- 10.4″ LCD Monitor
- Twin Spindle
- BBT #30 Dual Contact Spindle w/ Oil Cooling Unit
- 2 x 12,000 rpm DDS / [24,000 rpm Opt]
- Powerful 18 hp (13 kW) Spindle Motor – S3-15% / 82.8 Nm (61 lbs.-ft)
- Independent Z1 and Z2 Axis
- X / Y / Z and U Axis Roller Guideways
- U Axis for X Axis Compensation
- V Axis for Y Axis Compensation
- 400 mm Distance Between Spindle Center to Center
- 2,362 IPM (60m/min) X, Y, and Z Rapid Traverse
- Table
- 41” (1,040mm) x 16.9” (430mm)
- 880lbs.(400kg) Load Capacity
- Tool Magazine
- 2 x 24ea. Tool Storage
- Ø2.56” (Ø 65mm) Maximum Tool Diameter
- Fully Enclosed Splash Guard
- Gun Coolant / Bed Flushing Coolant / Shower Coolant
- 70 Bar CTS Preparation
- Air Gun
- Auto Door
- (4) Pairs of M-Codes
- Oil Skimmer
- (2) Internal Augers
- 3-Color Signal Light
- Table
Specifications subject to change without prior notice
