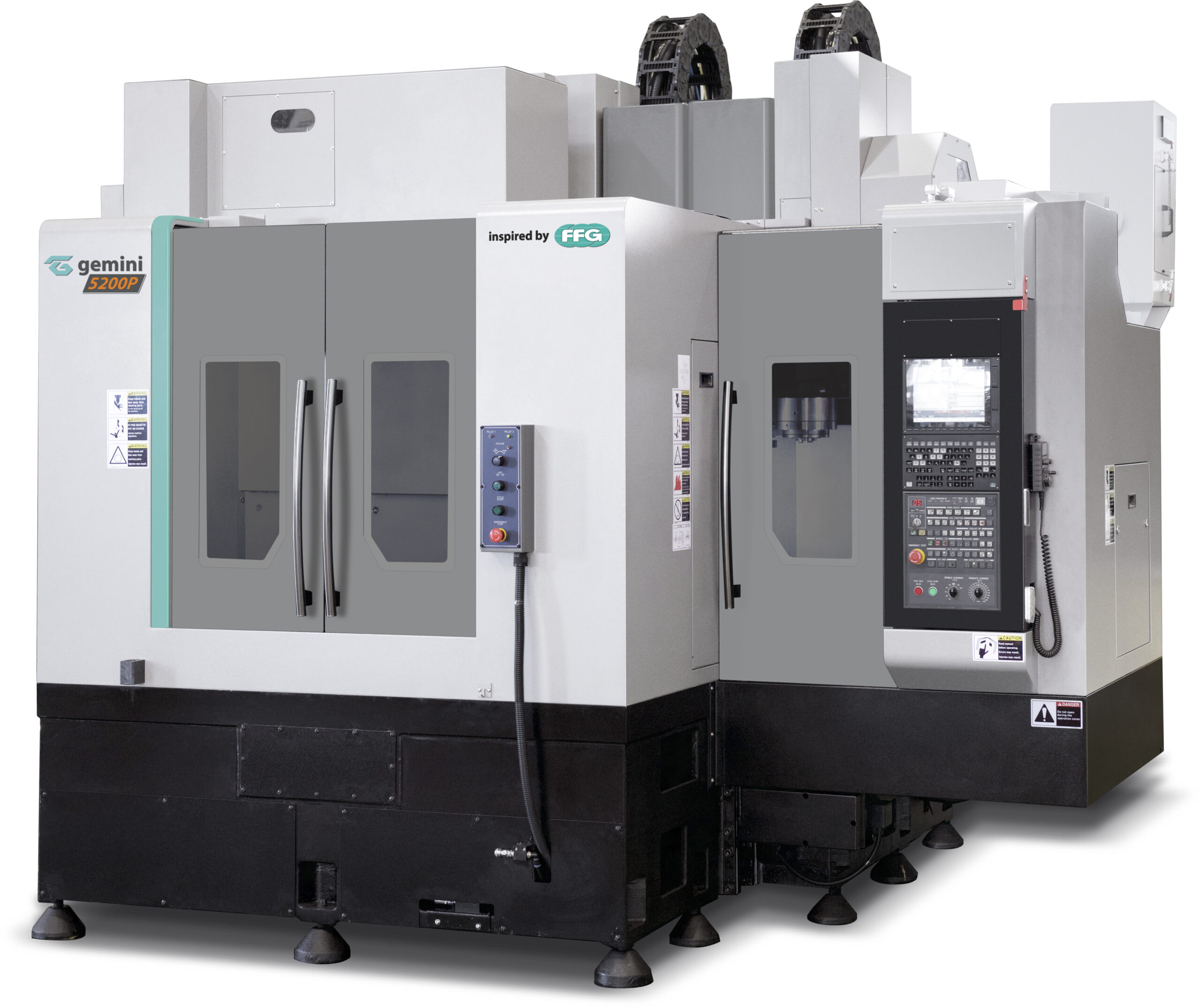

DVD-5200P
Twin Spindle Vertical Machining Center w/ Pallet Changer
- Fanuc 0i-MF Plus Controller
- 10.4″ LCD Monitor
- Twin Spindle
- CAT #40 Dual Contact Spindle
- 2 x 12,000 rpm DDS w/ Oil Cooling System
- Powerful 25 hp (18.5 kW) Spindle Motor
- Torque 87 lbf-ft (118 N.m) 8.9 kgf.m) S3-25%
- Independent Z1 and Z2 Axis
- X / Y / Z and U Axis Roller Guideways
- U Axis for X Axis Compensation
- V Axis for Y Axis Compensation
- 1,575 IPM (40m/min) X, Y, and Z Rapid Traverse
- Pallet Changer
- 37.4” (950mm) x 20.5” (520mm)
- 880 lbs.(400kg) Load Capacity
- Tool Magazine
- 2 x 30ea. Tool Storage
- Ø3.15” (Ø 80mm) Maximum Tool Diameter
- Hydraulic Interface (Rotary Joint Assembly: 2 x 6ports)
- (4) Double Acting Solenoid Valve + (2) Single Acting Air Solenoid Valve
- Gun Coolant / Bed Flushing Coolant / Shower Coolant
- 70 Bar CTS Preparation
- Air Gun
- Auto Door
- (4) Pairs of M-Codes
- Oil Skimmer
- (2) Internal Augers (X-Axis Direction)
- 3-Color Signal Light
- Tool Magazine
Specifications subject to change without prior notice
