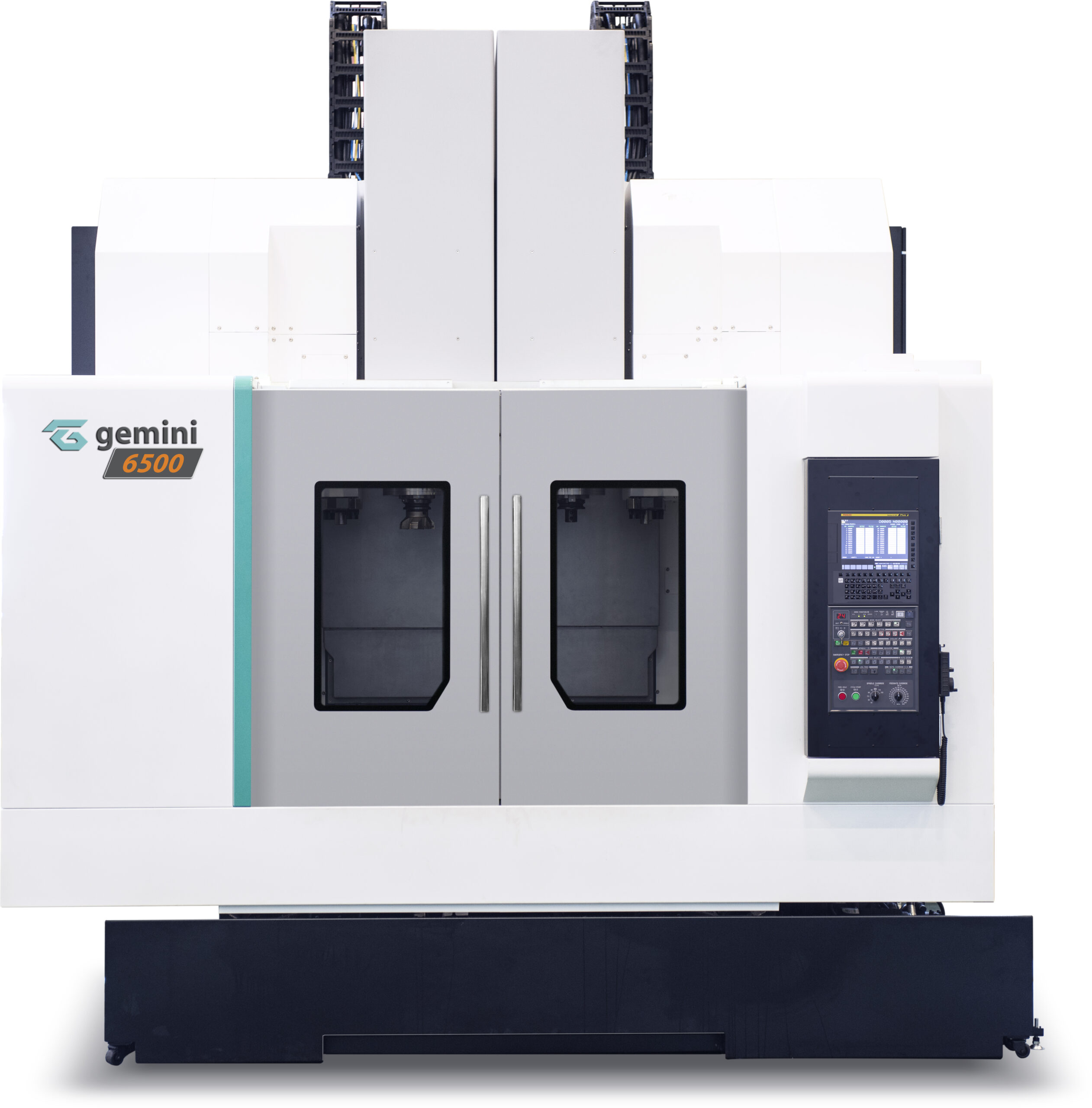

DVD-6500
Twin Spindle Vertical Machining Center
- Fanuc i-Series Controller
- 10.4″ LCD Monitor
- Twin Spindle
- CAT #40 Dual Contact Spindle
- 2 x 12,000 rpm DDS
- Powerful 25 hp (18.5 kW) Spindle Motor w/ Cooling System
- Torque 86.9 lbf-ft (117.8 N.m) – S3-25%
- Independent Z1 and Z2 Axis
- 650 mm (25.6″) / [550 mm (21.6″)] Distance Between Z1 and Z2
- X / Y / Z and U Axis Roller Guideways
- U Axis for X Axis Compensation
- V Axis for Y Axis Compensation
- 1,417 IPM (36m/min) X, Y, and 1,181 IPM (30m/min) Z Rapid Traverse
- Table
- 59” (1,500mm) x 26.3” (670mm)
- 2,860 lbs. (1300kg) Load Capacity
- Tool Magazine
- 2 x 30ea. Tool Storage
- Ø3.15” (Ø 80mm) Maximum Tool Diameter
- Gun Coolant / Bed Flushing Coolant / Shower Coolant
- 70 Bar CTS Preparation
- Air Gun
- Auto Door
- (4) Pairs of M-Codes
- Oil Skimmer
- (2) Internal Augers (X-Axis Direction)
- 3-Color Signal Light
- Table
Specifications subject to change without prior notice
