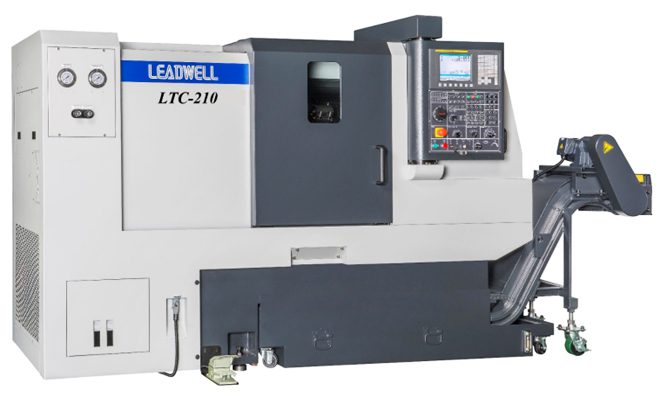

LTC-210
CNC Boxway Turning Center
- 20hp Fanuc Spindle Motor
- 3,500 rpm Spindle
- 10” Diameter Chuck w/ 3.0” Bar Capacity
- 14.9” Maximum Turning Diameter
- 19.7” Maximum Turning Length Available
- 12-Tool Station Bi-Directional Turret
- High Rigidity 30-Degree Slant Bed Consruction
- Tailstock w/ Programmable Quill
- Chip Conveyor w/ bucket
- Fanuc 0i-TF Plus 10.4” LCD Color Monitor w/ USB
- 64-bit Micro Processor
- 2MB Memory w/ PCMCIA Card Slot
- RS-232C & Embedded Ethernet Connections
- MPG Handwheel
- Custom Macro B & Skip Function
- Automatic Central Lubrication System
- Heat Exchanger for Electric Cabinet
Specifications subject to change without prior notice
