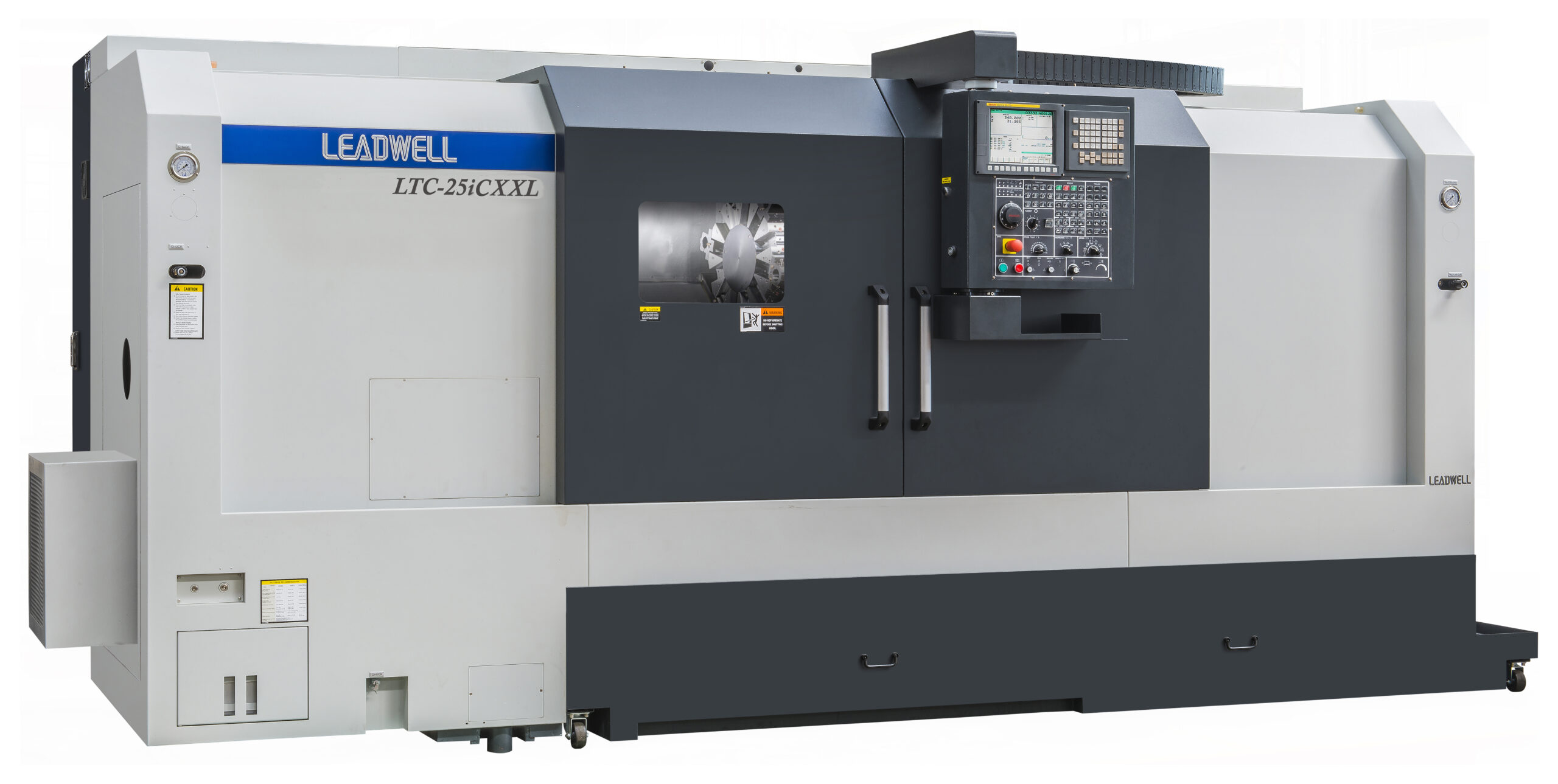

LTC-25iCXXL
Heavy Boxway Turning Center
- Fanuc 0i-TF Plus Controller
- 10.4″ LCD Monitor
- 2,600 rpm Spindle
- Powerful 35 HP (26kW) Spindle Motor – S2-30 min
- Torque 837 lbf-ft (1,135 N.m)
- Ø4.19” (Ø106.4 mm) Bar Capacity
- Ø17.7” (Ø450 mm) Maximum Turning Diameter
- 40.1” (1,018 mm) Turning Length
- A2-11 Spindle Nose
- Box Guideway
- Tool size: □1.0”/Ø 1.5”
- 3-Color Tower Signal Light
- 590 IPM (15 m/min) X, and 787 IPM (20m/min) Z Rapid Traverse
- Programmable Tailstock & Quill
- Auto Tool Pre Setter
- Bar Feeder Interface
- Chip Conveyor w/ Bucket
- Manual Guide i
- Air Gun
- Coolant Gun
- 3 Sets of Soft Jaws
- 1 Set of Hard Jaw
- 45° Slanted All-In-One Bed Structure
Specifications subject to change without prior notice
