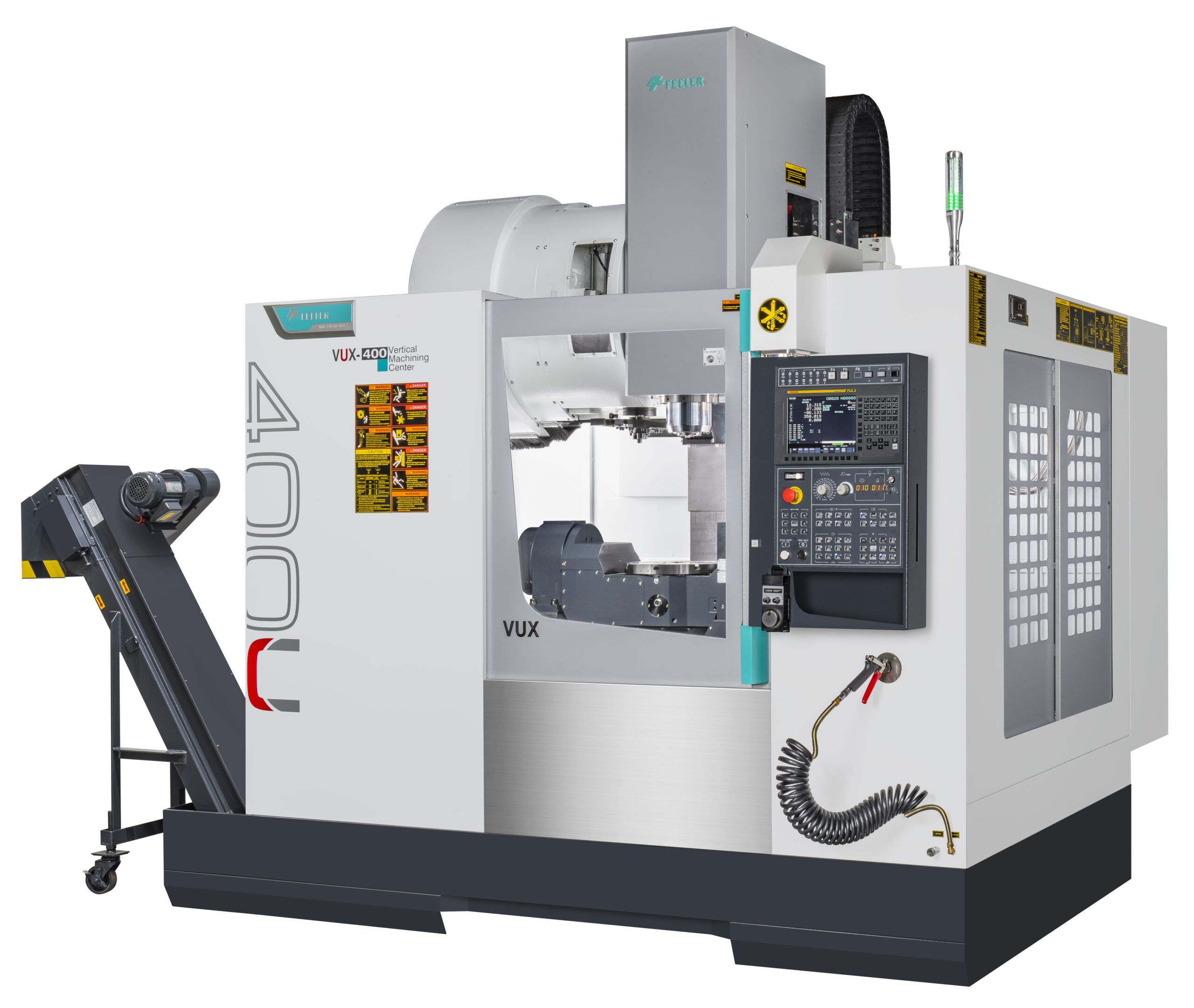

VUX-400
High Performance 4+1 Axis Vertical Machining Center
- Fanuc 0i-MF Plus Controller
- 10.4” LCD Monitor
- Spindle
- Big Plus CAT #40 (Dual Contact)
- 12,000 rpm DDS w/ Oil Cooler
- Powerful 24.8 HP (18.5 kW) S3-15%
- Torque 87 lbf-ft (118 N.m)
- Oil Chiller
- Table
- 13.8” (350 mm) Diameter
- 440 lbs.(200 kg -H) Load Capacity
- ATC 30 Tools
- X / Y / Z Roller Guide Ways
- Fast 36 m/min (1,417 IPM) X, Y and 30 m/min (1,181 IPM) Z Rapid Traverse
- AICC II
- Flushing System & Coolant Gun
- Hydraulic Interface (2 Inlets & 2 Outlets on the Table)
- Chip Conveyor
- (8) M-Code
- Oil Skimmer
- Auto Power Off
- Spindle Coolant Ring
- Spindle Coolant & Air Nozzles
- Automatic Lubrication Systems
- Door Interlock
- E-Manuals Provided by QR Code
- 3-Color Tower Signal Light
Specifications subject to change without prior notice
